Top Brands in Marine Equipment

ElectroMech Marine has been providing the best products for their customers since opening our doors in 1992. Whether you’re looking for parts to repair your boat or accessories to simply improve performance—we stock some of the best quality products on the market.

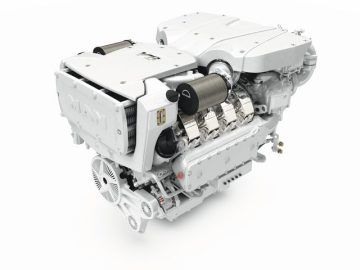

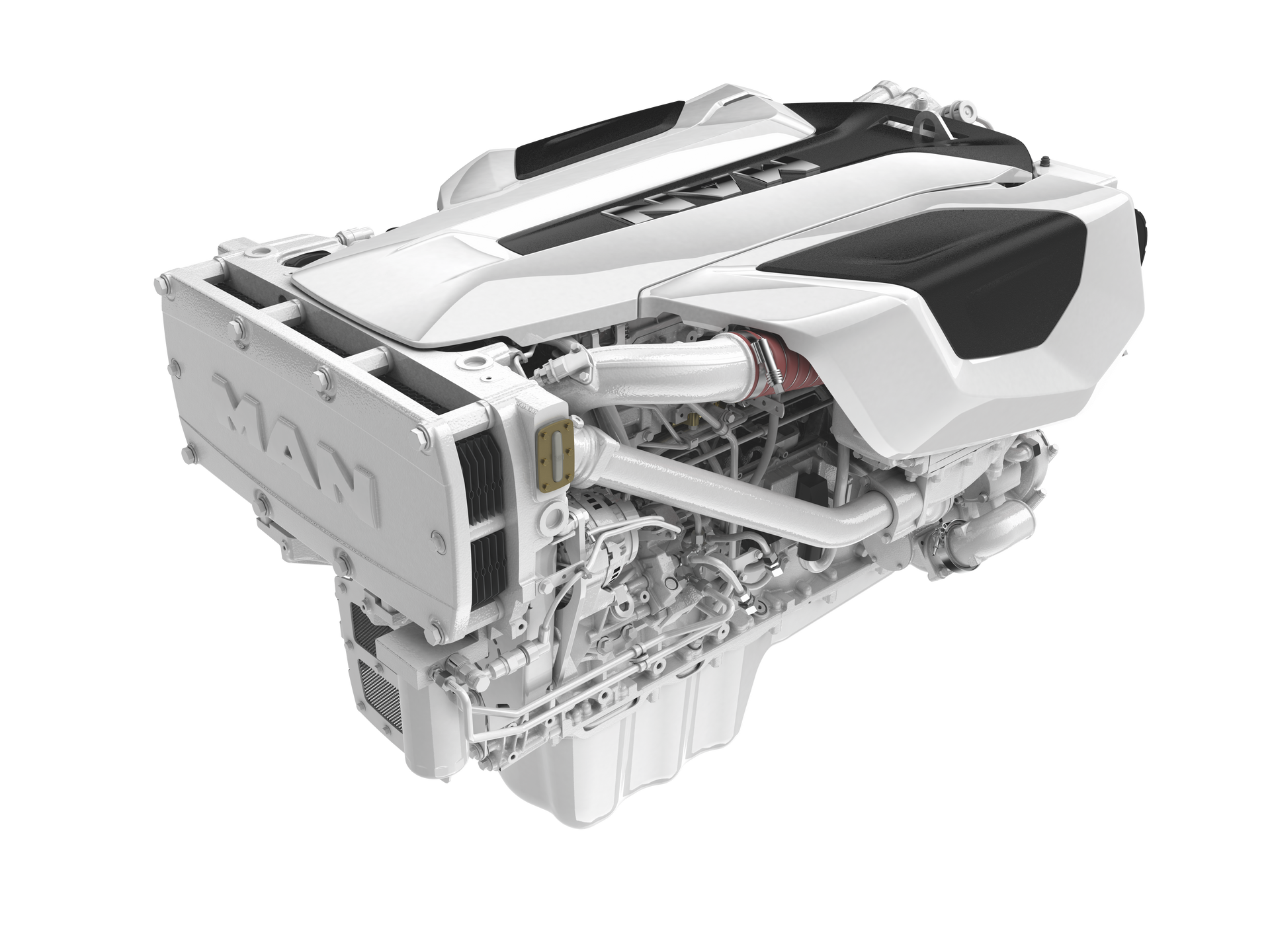

Check out the brands we are dealers for MAN, Cummins Onan, Victron Energy, Nanni Diesel and Volvo Penta.

Dealer Icon

Cummins Onan Dealer

Experts Icon

DC Systems Experts

Service Icon

Hydraulic Repair Services

Experience Icon

Offshore Industry Experience

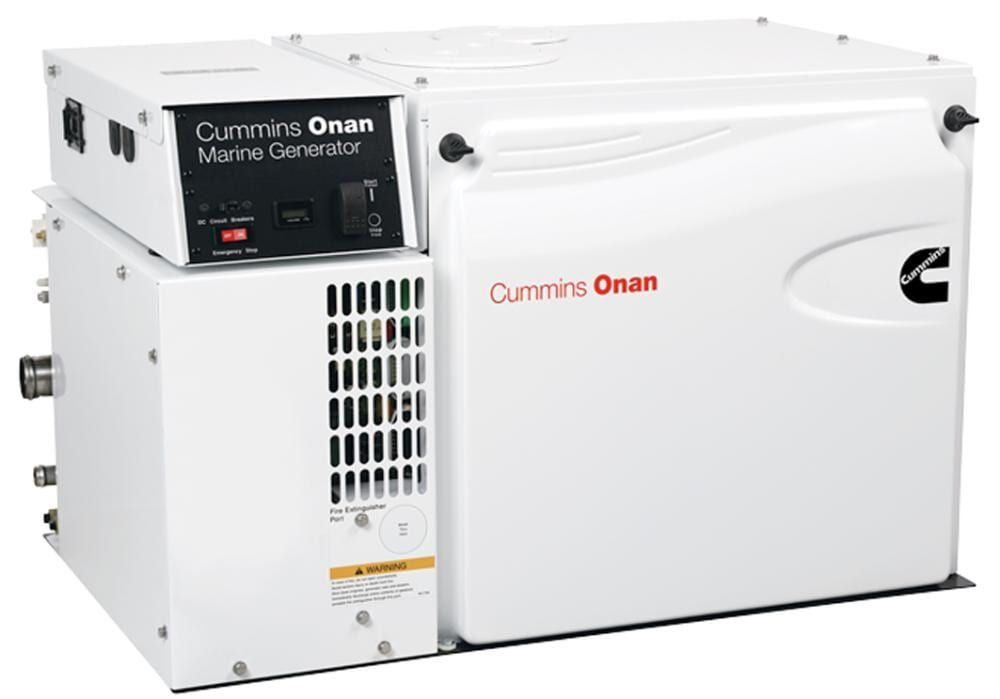

Cummins Onan

Cummins Onan is the global leader in manufacturing mobile generator sets for marine and recreational vehicle applications. When reliability and performance matter, you can count on us to deliver. Cummins Onan generators are supported by the largest and best-trained worldwide certified distributor/dealer network in the industry. That means that when you need help, a Cummins Onan distributor/dealer is nearby. This extensive network makes it easier to get genuine parts, quality service, and expert installation assistance when and where you need them.

MDKBH-4K

  • Continuous Rating kW: 4
  • Hz: 50
  • Rated RPM: 2400
  • Phase 1
  • Sound Shield: Yes
  • Weight: 166kg
  • Dimensions L x W x H, mm: 662 x 511 x 524

MDKBJ-6KW

  • Continuous Rating kW: 6
  • Hz: 50
  • Rated RPM: 2400
  • Phase 1
  • Sound Shield: Yes
  • Weight: 195kg
  • Dimensions L x W x H, mm: 664 x 583 x 535

MDKDL-7KW

  • Continuous Rating kW: 7
  • Hz: 50
  • Rated RPM: 1500
  • Phase 1
  • Sound Shield: Yes
  • Weight: 272kg
  • Dimensions L x W x H, mm: 911 x 566 x 593

MDKDK-7 KW

  • Continuous Rating kW: 7
  • Hz: 50
  • Rated RPM: 1500
  • Phase 1
  • Sound Shield: No
  • Weight: 238kg
  • Dimensions L x W x H, mm: 823 x 479 x 562

MDKBW-8 KW

  • Continuous Rating kW: 8
  • Hz: 50
  • Rated RPM: 2800
  • Phase 1
  • Sound Shield: Yes
  • Weight: 195kg
  • Dimensions L x W x H, mm: 664 x 583 x 535

MDKDM-9.5 KW

  • Continuous Rating kW: 9.5
  • Hz: 50
  • Rated RPM: 1500
  • Phase 1
  • Sound Shield: Yes
  • Weight: 315kg
  • Dimensions L x W x H, mm: 1033 x 566 x 593

MDKDN-11 KW

  • Continuous Rating kW: 11
  • Hz: 50
  • Rated RPM: 1500
  • Phase 1
  • Sound Shield: Yes
  • Weight: 315kg
  • Dimensions L x W x H, mm: 1033 x 566 x 593

MDKDP-13.5KW

  • Continuous Rating kW: 13.5
  • Hz: 50
  • Rated RPM: 1500
  • Phase 1 & 3
  • Sound Shield: No
  • Weight: 408kg
  • Dimensions L x W x H, mm: 1127 x 602 x 698

MDKDR-17.5 KW

  • Continuous Rating kW: 17.5
  • Hz: 50
  • Rated RPM: 1500
  • Phase 1 & 3
  • Sound Shield: Yes
  • Weight: 422kg
  • Dimensions L x W x H, mm: 1127 x 602 x 698

MDKDV

  • Continuous Rating kW: 19
  • Hz: 50
  • Rated RPM: 1500
  • Phase 1 & 3
  • Sound Shield: Yes
  • Weight: 422kg
  • Dimensions L x W x H, mm: 1127 x 602 x 698

MDKDT-22.5 KW

  • Continuous Rating kW: 22.5
  • Hz: 50
  • Rated RPM: 1500
  • Phase 1 & 3
  • Sound Shield: Yes
  • Weight: 601kg
  • Dimensions L x W x H, mm: 1358 x 622 x 761

MDKDU-27 KW

  • Continuous Rating kW: 27
  • Hz: 50
  • Rated RPM: 1500
  • Phase 1 & 3
  • Sound Shield: Yes
  • Weight: 626kg
  • Dimensions L x W x H, mm: 1358 x 622 x 761

MDDCF-40 KW

  • Continuous Rating kW: 40
  • Hz: 50
  • Rated RPM: 1500
  • Phase 1 & 3
  • Sound Shield: No
  • Weight: 1039kg
  • Dimensions L x W x H, mm: 1738 x 840 x 1039

MDDCG-50 KW

  • Continuous Rating kW: 50
  • Hz: 50
  • Rated RPM: 1500
  • Phase 1 & 3
  • Sound Shield: Yes
  • Weight: 1167kg
  • Dimensions L x W x H, mm: 1783 x 840 x 1039

Victron Energy

Whether you sail for fun or on a professional basis, it is of the utmost importance to have a reliable power supply for all the electrical equipment to properly function, even in the middle of the sea. Victron Energy offers a broad range of products that are extremely suitable for your onboard power system. We proudly present you our modern translation for freedom and independence. Our products are being used in many different kinds of vessels: sailing yachts, cruise ships, sloops, tugboats, motorboats and container ships.

A Wall With a Lot of Buttons and Lights on It  — ElectroMech Machine in Woolner, NT
Download

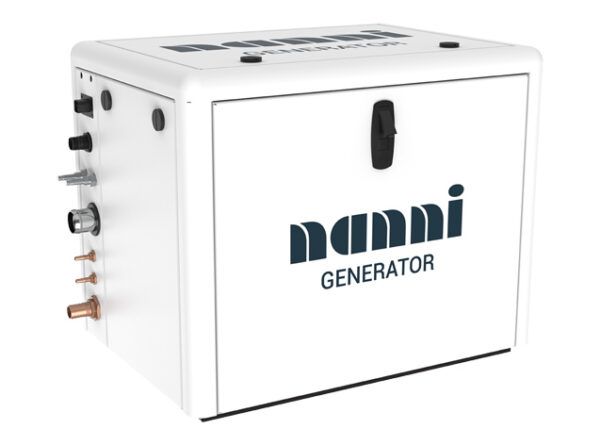

QMF6M (5KW)

NANNI MARINE DIESEL GENERATOR

  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 21.7 max
  • Amperes (A): 20 cont.
  • Power (kW): 5 max
  • Power (kW): 4.6 cont.
  • RPM: 3000
Download
  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 28.7A max
  • Amperes (A): 32.7 amps cont.
  • Power (kW): 7.5 max
  • Power (kW): 6.6 cont.
A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

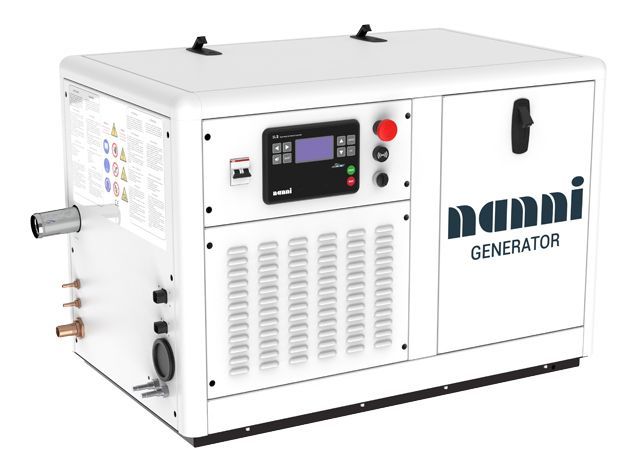

QMS7.5M (7.5KW)

NANNI MARINE DIESEL GENERATOR

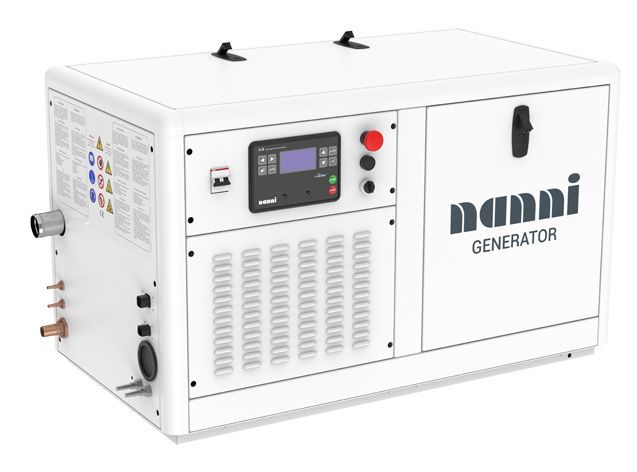

QMS10M (10KW)

Download
  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 43.5 max
  • Amperes (A): 38.3 cont.
  • Power (kW): 10 max
  • Power (kW): 8.8 cont.
  • RPM: 1500
A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

NANNI MARINE DIESEL GENERATOR

A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

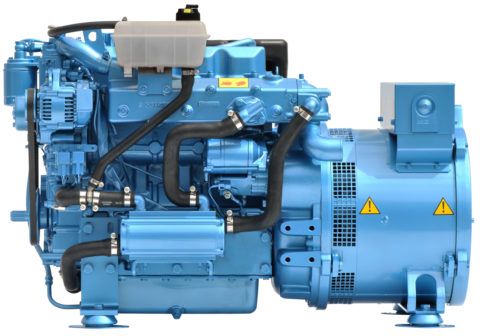

QMS16M (16KW)

NANNI MARINE DIESEL GENERATOR

  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 70.4 max
  • Amperes (A): 60.4 cont.
  • Power (kW): 16.2 max
  • Power (kW): 13.9 cont.
  • RPM: 1500
Download
A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

NANNI MARINE DIESEL GENERATOR

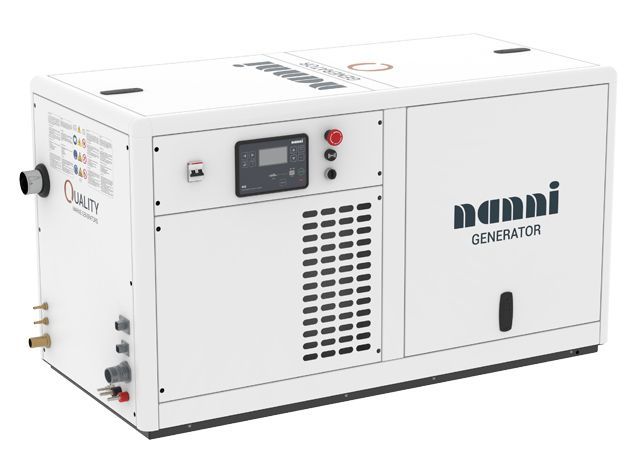

QMS25M (22.7KW)

  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 106.1 max
  • Amperes (A): 96.1 cont.
  • Power (kW): 22.7 max
  • Power (kW): 22.2 cont.
  • RPM: 1500
Download

Victron Energy

MULTIPLUS INVERTER/CHARGER

EASY SOLAR EASYSOLAR 12V AND 24V, 1600VA

EASYPLUS BROCHURE

QUATTRO INVERTER/CHARGER

MULTIPLUS-II GX INVERTER/CHARGER

EASYSOLAR 3 KVA & 5 KVA

MULTIPLUS-II COMPARISON SHEET

Nanni Diesel

Established in 1952, Nanni Diesel offers some of the most trusted and respected marine engines in the world. With a full range of high quality marine diesel engines and marine generators, Nanni Diesel Australia is able to provide complete power systems for your boat.


Whether you’re rebuilding an engine or replacing your old one, our team will provide the best results with Nanni Diesel engines and components.


Get in touch with our team to find out more about a specific model.

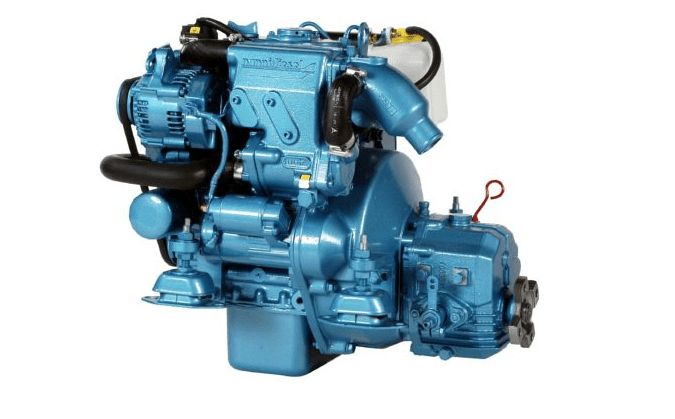

Nanni Kubota Engines

The engine blocks provided by KUBOTA are well known for high quality and technology standards. They ensure easier manoeuvring and cruising, and maximum speeds are easily reached thanks to an immediate torque at low

RPM and full power at medium RPM.


NANNI KUBOTA ADVANTAGES

  • Reliability
  • High torque, low revs
  • Optimised weight and volume
  • Onboard comfort
  • High environmental standards

Nanni Toyota Engines

Developed out of the original automotive blocks of TOYOTA, these engines from 200 to 370 hp are designed for powerboats, sport boats, rigid-bottom inflatable boats, sport fishing, fast cruisers etc.


NANNI TOYOTA ADVANTAGES

  • Remarkable weight/power ratio
  • Immediate acceleration: fast hole-shot
  • Low noise and gas emission levels
  • Reduced vibrations

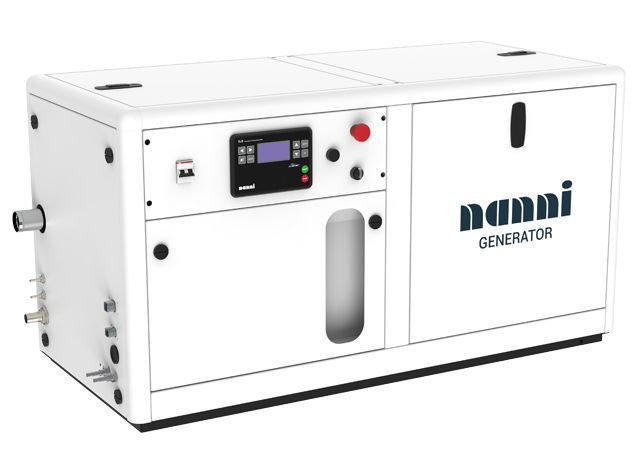

Nanni Marine Diesel Generators

Nanni offers a range of diesel 50Hz Marine Generators with power range

from 5kW to 35kW. All generators are delivered, assembled and ready for installation.


The Nanni Diesel Marine Generator range is powered by the ever reliable Kubota diesel with Nanni’s freshwater cooling through a heat exchanger.


Nanni is able to provide all installation related equipment, from fuel tank to exhaust system.

QMF Series

Designed specifically for pleasure duty applications, our most compact unit within the Nanni Diesel Marine Generator range comes standard with a sound attenuated enclosure. Both the engine and alternator are water-cooled, ensuring a maximal life span and smooth functioning.


QMS Series


Alternators used in the QMS Nanni Diesel Marine Generator range are manufactured by Mecc Alte, a world leader in the production of compact synchronous alternators. All generator sets in the QMS series are available with an optional sound enclosure.

NANNI KUBOTA ENGINE

N2.10

  • Engine Base: Kubota
  • Rated Power (kW/HP): 7.36 / 10
  • Rated RPM: 3000
  • Displacement (cm³/in³): 479 / 29
  • Number of Cylinders: 2 in line
  • Bore and Stroke (mm/in): 67 x 68 / 2.64 x 2.68
  • Compression Ratio: 23:1
  • Intake: Naturally Aspirated

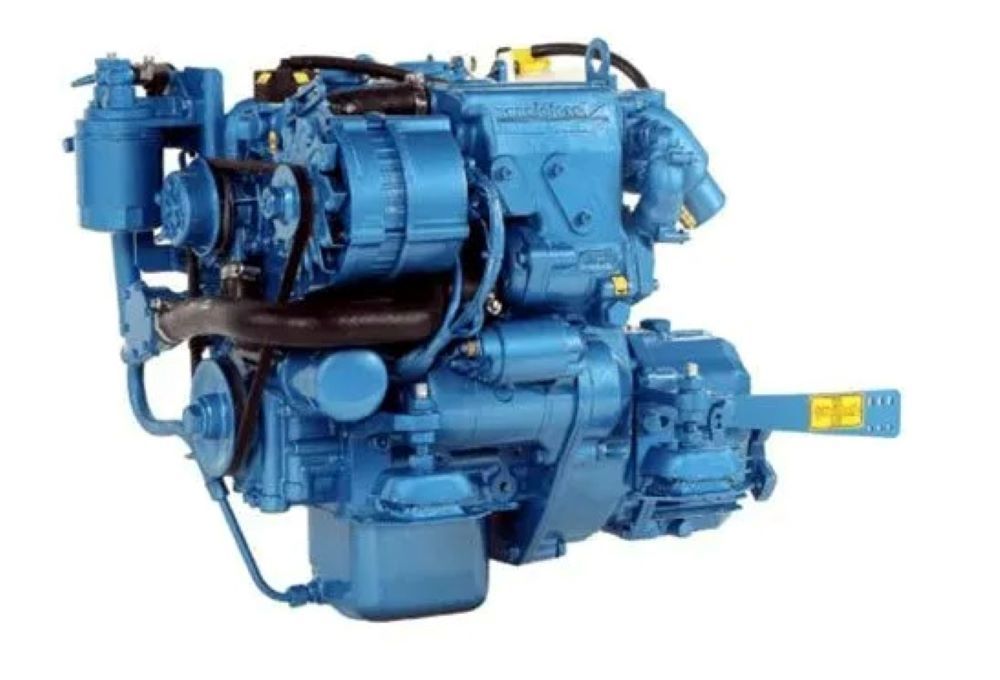

NANNI KUBOTA ENGINE

N2.14

  • Engine Base: Kubota
  • Rated Power (kW/HP): 10.3 / 14
  • Rated RPM: 3600
  • Displacement (cm³/in³): 479 / 29
  • Number of Cylinders: 2 in line
  • Bore and Stroke (mm/in): 67 x 68 / 2.64 x 2.68
  • Compression Ratio: 23:1
  • Intake: Naturally Aspirated


NANNI KUBOTA ENGINE

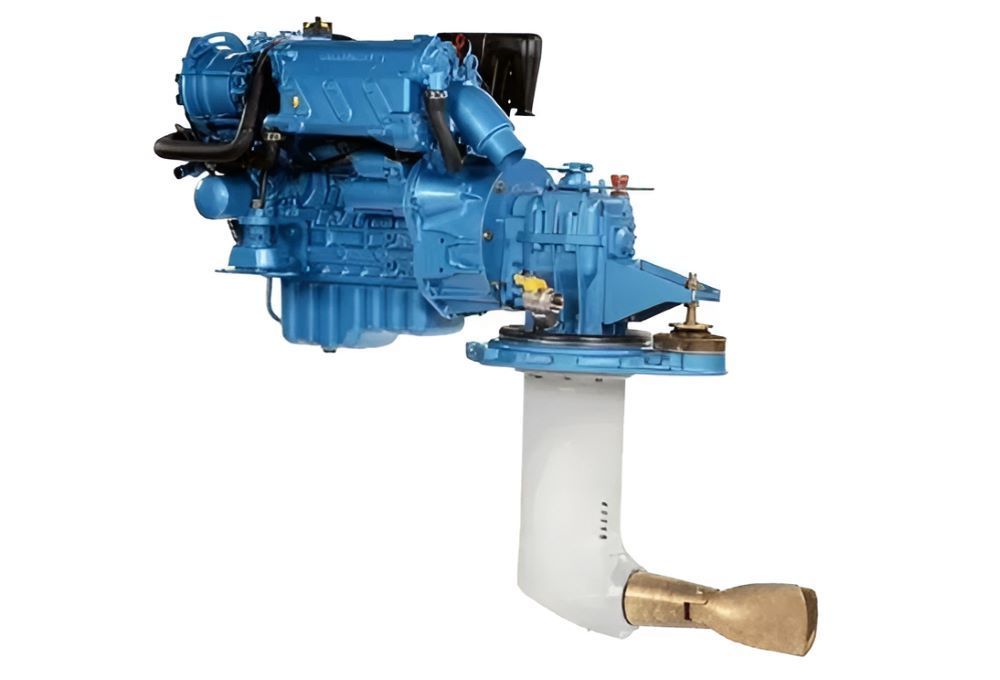

N3.21

  • Engine Base: Kubota
  • Rated Power (kW/HP): 15.4 / 21
  • Rated RPM: 3600
  • Displacement (cm³/in³): 719 / 46.86
  • Number of Cylinders: 3 in line
  • Bore and Stroke (mm/in): 67 x 68 / 2.64 x 2.68
  • Compression Ratio: 23:1
  • Intake: Naturally Aspirated


NANNI KUBOTA ENGINE

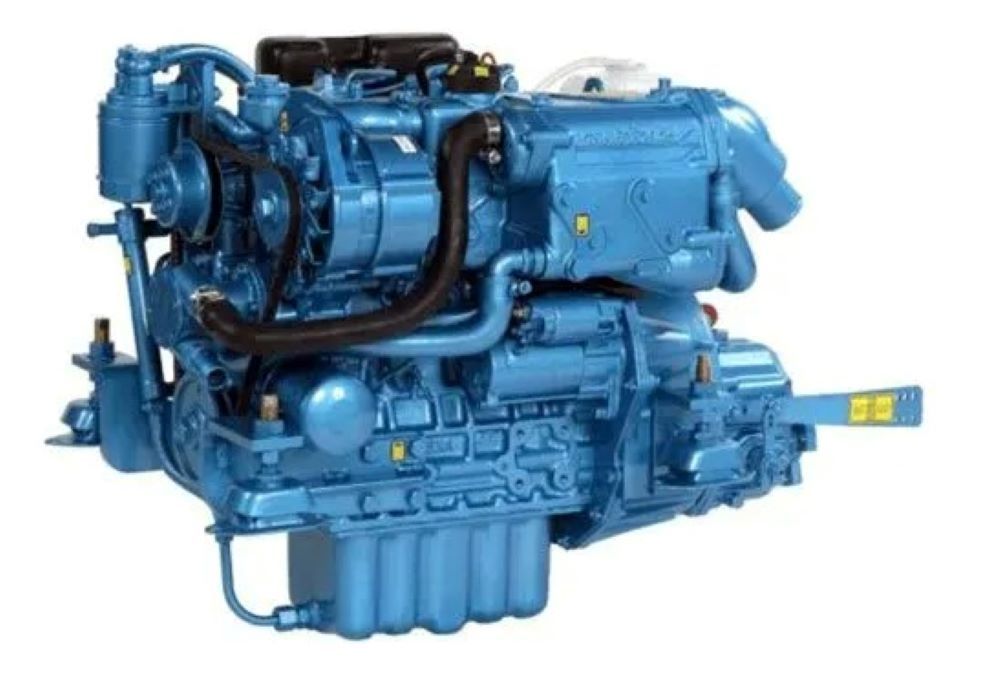

N3.30

  • Engine Base: Kubota
  • Rated Power (kW/HP): 21.3 / 29
  • Rated RPM: 3600
  • Displacement (cm³/in³): 1123 / 69
  • Number of Cylinders: 3 in line
  • Bore and Stroke (mm/in): 78 x 78.4 / 3.07 x 3.09
  • Compression Ratio: 24:1
  • Intake: Naturally Aspirated

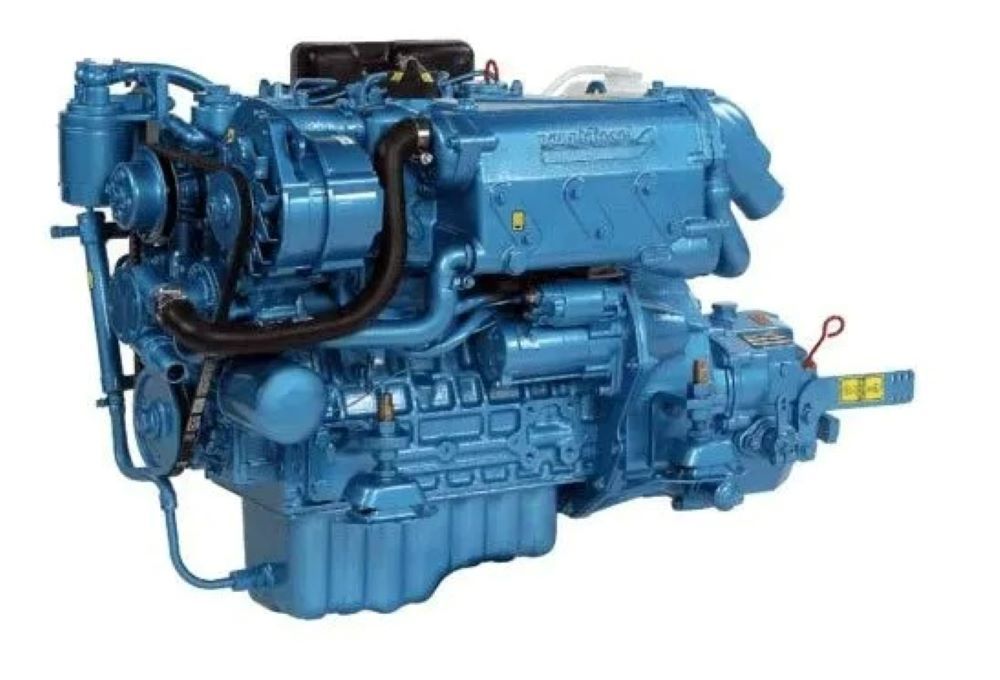

NANNI KUBOTA ENGINE

N4.38

  • Engine Base: Kubota
  • Rated Power (kW/HP): 27.6 / 37.5
  • Rated RPM: 3000
  • Displacement (cm³/in³): 1498 / 91
  • Number of Cylinders: 4 in line
  • Bore and Stroke (mm/in): 78 x 78.4 / 3.07 x 3.09
  • Compression Ratio: 23:1
  • Intake: Naturally Aspirated

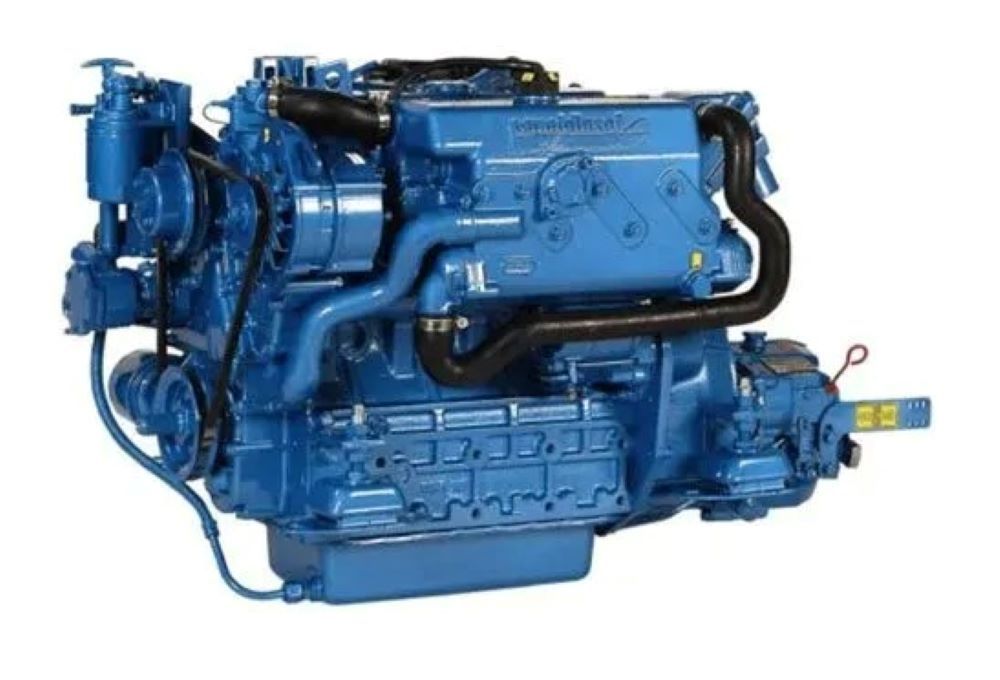

NANNI KUBOTA ENGINE

N4.50

  • Engine Base: Kubota
  • Rated Power (kW/HP): 36.8 / 47.5
  • Rated RPM: 2800
  • Displacement (cm³/in³): 2197 / 134
  • Number of Cylinders: 4 in line
  • Bore and Stroke (mm/in): 87 x 92.4 / 3.43 x 3.64
  • Compression Ratio: 22:1
  • Intake: Naturally Aspirated


NANNI KUBOTA ENGINE

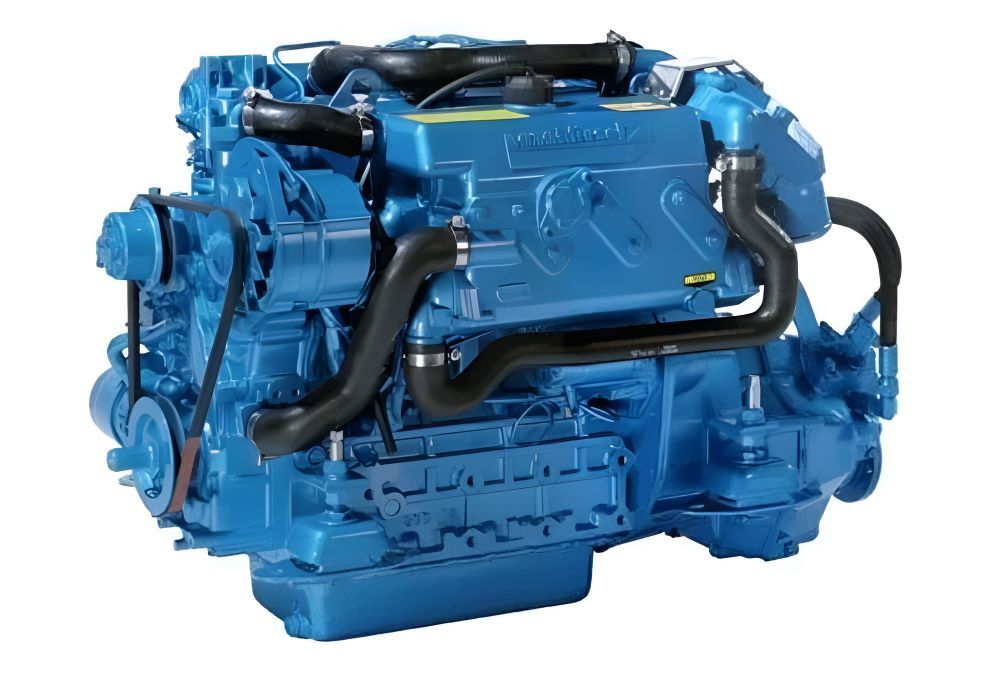

N4.65

  • Engine Base: Kubota
  • Rated Power (kW/HP): 43.4 / 59
  • Rated RPM: 2800
  • Displacement (cm³/in³): 2434 / 148.5
  • Number of Cylinders: 4 in line
  • Bore and Stroke (mm/in): 87 x 102.4 / 3.43 x 4.03
  • Compression Ratio: 23:1
  • Intake: Turbocharged


NANNI KUBOTA ENGINE

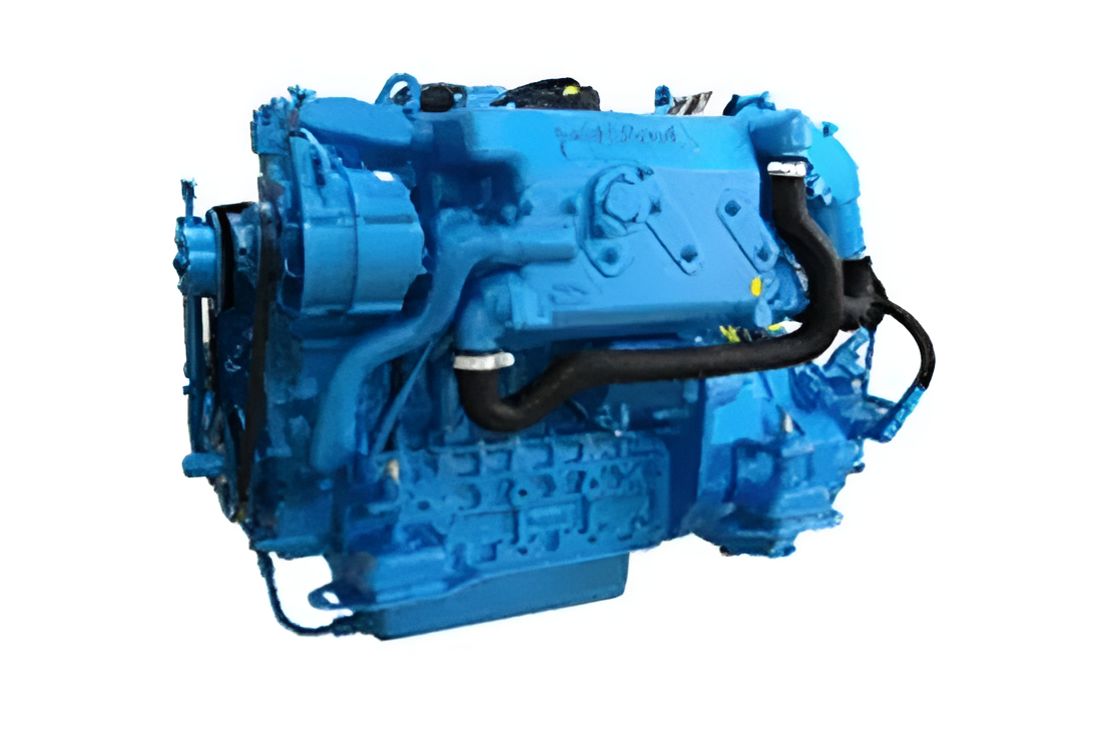

N4.80

  • Engine Base: Kubota
  • Rated Power (kW/HP): 57.4 / 79
  • Rated RPM: 2700
  • Displacement (cm³/in³): 2434 / 148.5
  • Number of Cylinders: 4 in line
  • Bore and Stroke (mm/in): 87 x 102.4 / 3.43 x 4.03
  • Compression Ratio: 23:1
  • Intake: Turbocharged

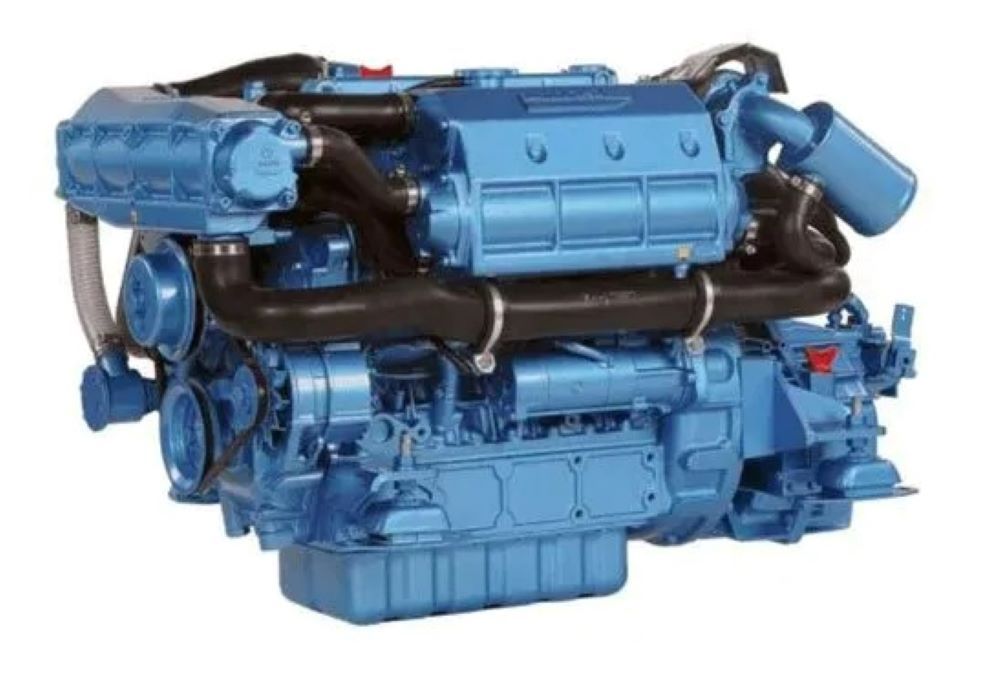

NANNI KUBOTA ENGINE

N4.115

  • Engine Base: Kubota
  • Rated Power (kW/HP): 84.6 / 115
  • Rated RPM: 2600
  • Displacement (cm³/in³): 3769 / 230
  • Number of Cylinders: 4 in line
  • Bore and Stroke (mm/in): 100 x 120 / 3.94 x 4.72
  • Compression Ratio: 21.8:1
  • Intake: Turbocharged


NANNI KUBOTA ENGINE

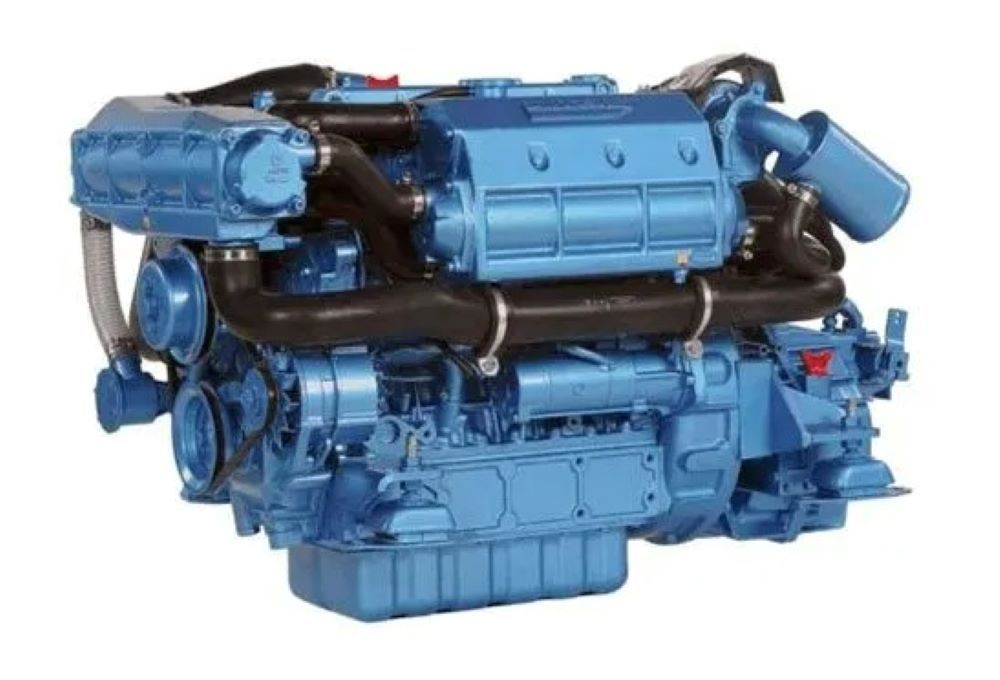

N4.140

  • Engine Base: Kubota
  • Rated Power (kW/HP): 84.6 / 115
  • Rated RPM: 2600
  • Displacement (cm³/in³): 3769 / 230
  • Number of Cylinders: 4 in line
  • Bore and Stroke (mm/in): 100 x 120 / 3.94 x 4.72
  • Compression Ratio: 21.8:1
  • Intake: Turbocharged


Divider

Polyflex Mounting Systems

Poly Flex Group Pty Ltd is an Australian company and since commencing in 1981 we have continued to expand both in product range and areas of export. Poly Flex manufactures Engine Mounting Systems, Flexible Disc Couplings & Steel Shaft Couplings which are available with DNV Type Approval. Det Norske Veritas (DNV) is a Norwegian based classification society, a respected leader of manufacturing procedures and standards that is accepted by class approval societies and approving bodies worldwide.

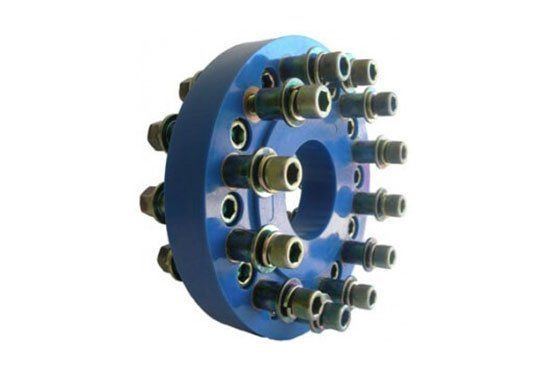

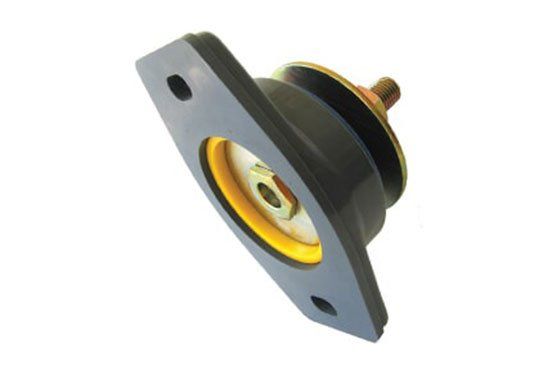

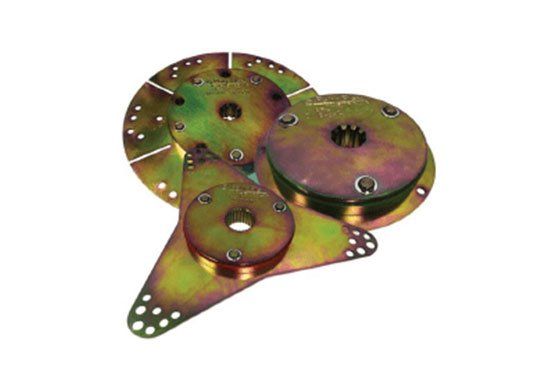

Our products include mounting systems, coupling systems & damper drive plates:

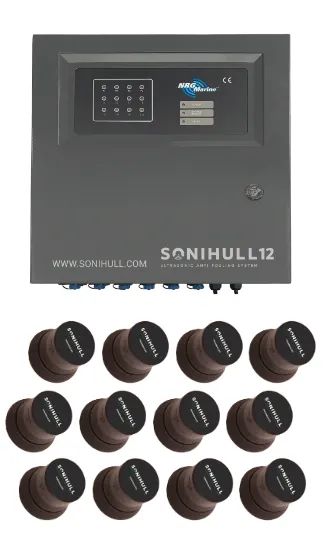

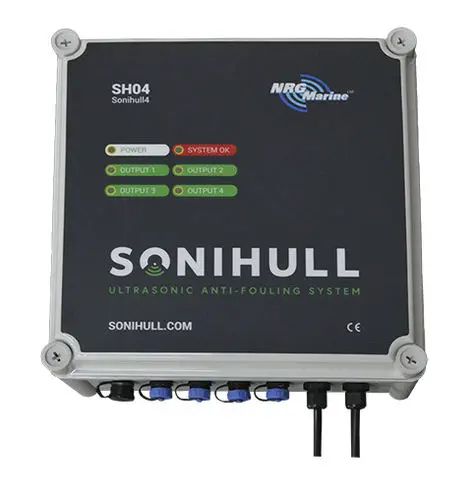

Sonihull

The Sonihull ultrasonic antifouling system by NRG Marine uses the latest digital electronics and ultrasonic transducer technology. This system works by producing bursts of ultrasonic energy in multiple frequencies, the energy creates a pattern of alternating positive and negative pressure. Microscopic bubbles are created from the negative pressure, while the positive pressure implodes them forming vapor cavities known as cavitation. The result of the implosion is a micro jet action that creates a cleaning effect on the hulls surface below the waterline. It also resonates and destroys single cell organisms such as algae. Removing the initial link in the food chain prevents barnacles and other marine life to feed on the algae.


There are 3 Sonihull Systems, the Sonihull Mono, the Sonihull Duo and the Sonihull8:

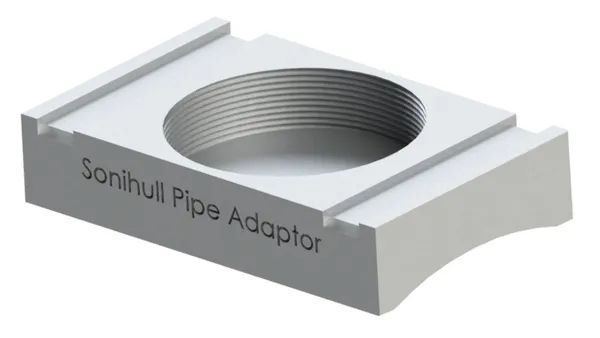

PIPE ADAPTER

Fouling in pipe work can be a major problem. It doesn't take long before fouling can start to restrict the flow of water, which can lead to engines and generators being destroyed as a result of over heating and water pumps wearing out due to the sharp increase in pressure.


Read more about Pipe Adapter.

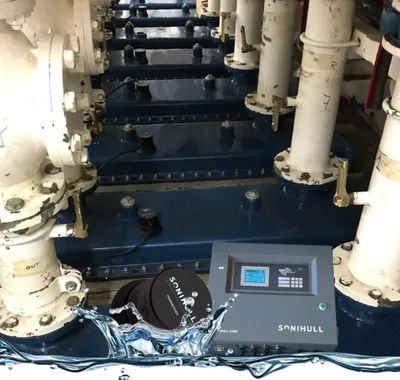

BOX COOLER

Box Coolers are essential for keeping your engines and auxiliary systems working properly, marine bio-fouling on box coolers reduces water contact and cooling performance drops. This can accelerate engine wear and can lead to overheating and equipment failure. Traditional solutions require complicated installation and extensive maintenance.


Read more about Box Cooler Protection.

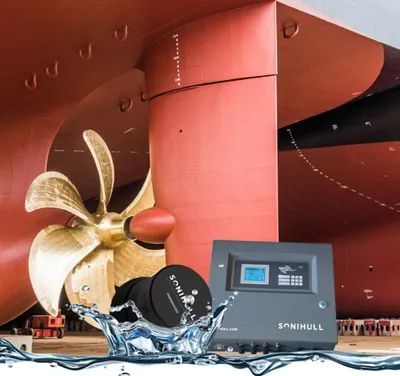

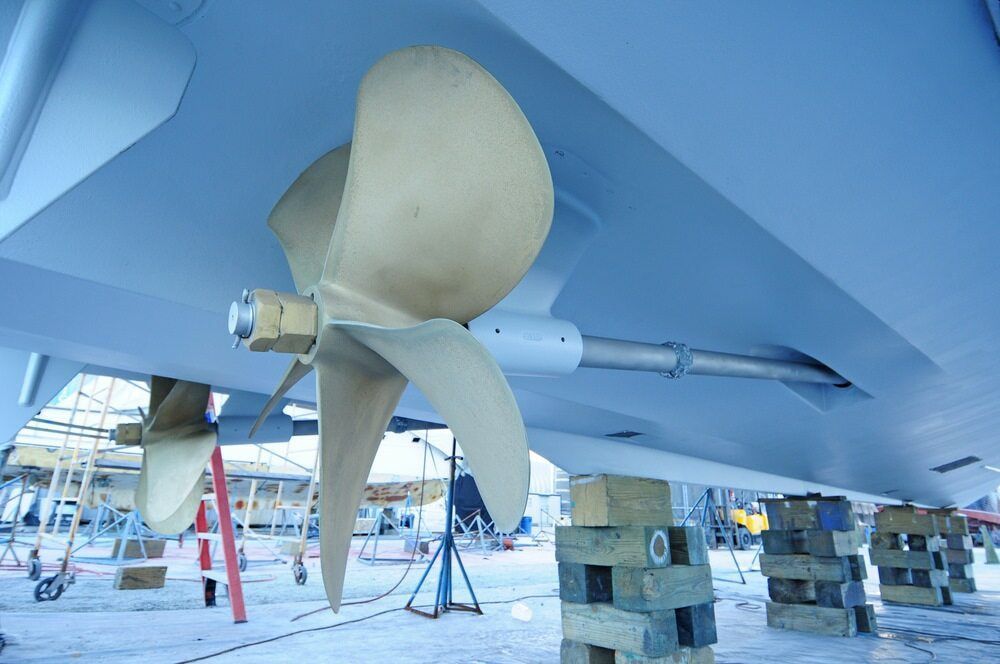

PROP SHAFT & PROPELLER PROTECTION

Prop Shafts & Propellers are one of the most critical elements of your vessel performance and fuel consumption. Controlling Fouling on the prop shaft and propeller surfaces can reduce your fuel bills by up to 40%, extend your essential maintenance intervals and remove the need for expensive downtime.


Read more about Prop Shaft & Propeller Protection.

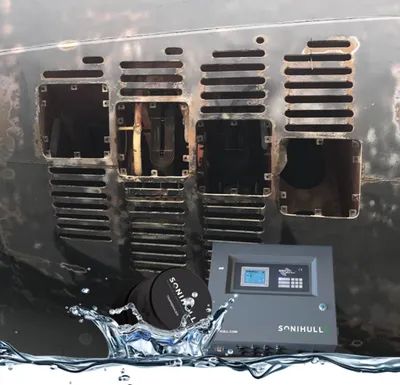

SEA CHEST PROTECTION

Sea Chests are an important component in the maintenance and operation of your cooling system. Sea chests provide a perfect habitat for marine organisms and if left un-protected will quickly become choked with algae, weeds and molluscs. Traditional solutions require complicated installation and extensive maintenance.


Read more about Sea Chest Protection.

Volvo Penta

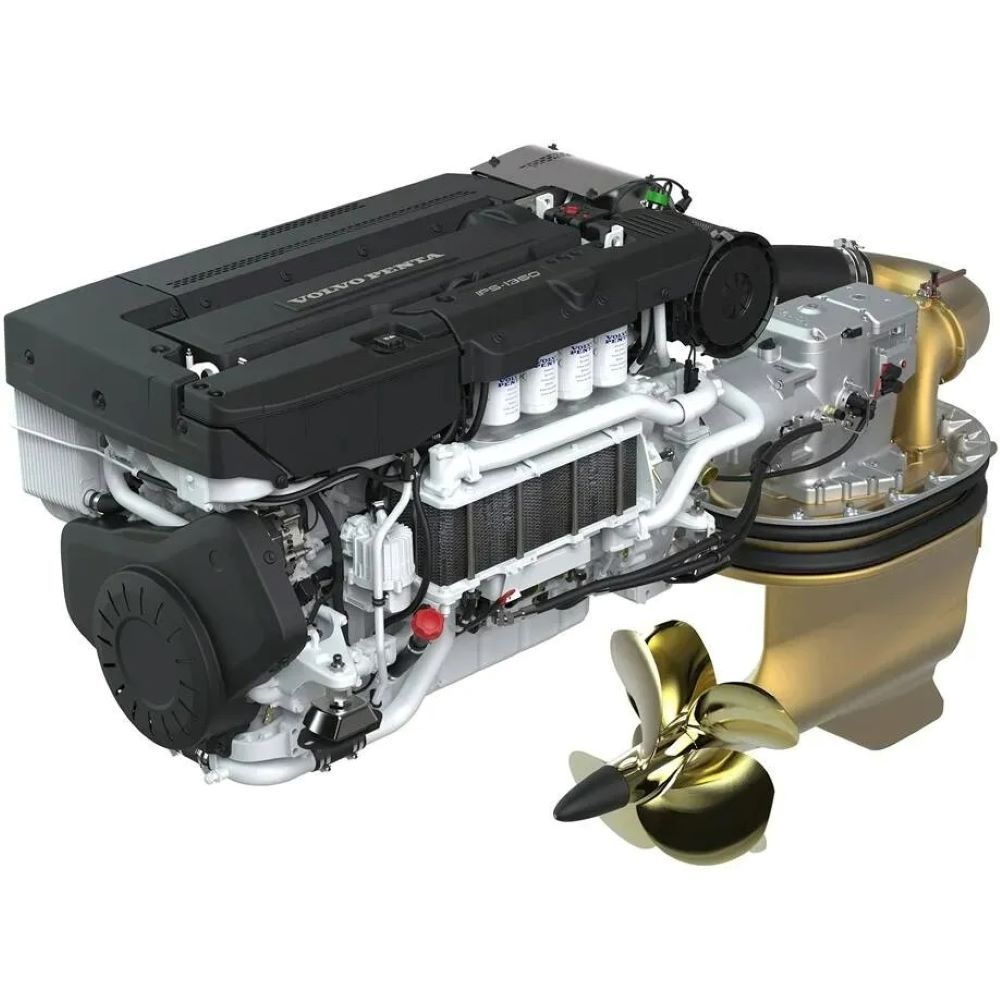

Volvo Penta IPS

The unique Volvo Penta IPS system improves power, performance as well as onboard comfort for operators in both commercial and leisure applications. The system increases control, manoeuvrability and fuel efficiency and allows for a wide number of beneficial optional features and functions. The key to these exceptional qualities lies in the forward-facing, twin counter-rotating propellers with individually steerable IPSs under the hull.


Read more about Volvo Penta IPS.

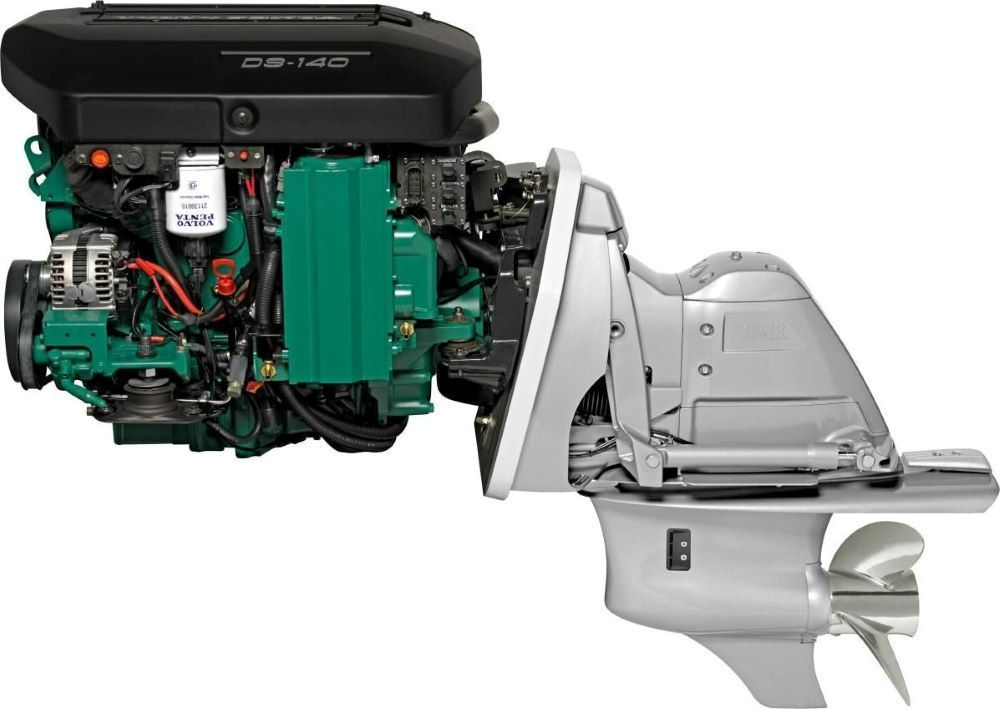

Volvo Penta Aquamatic Sterndrive Diesel

The Aquamatic Sterndrive is a comprehensive solution for boaters and operators seeking an optimal combination of high speed, acceleration, fuel efficiency and comfort in boats spanning 20 to 60 feet. It’s a perfectly matched package – from controls to engine, drive and propellers – available with a wide range of fuel-efficient and reliable diesel engines.


Read more about Volvo Penta Aquamatic Sterndrive Diesel.

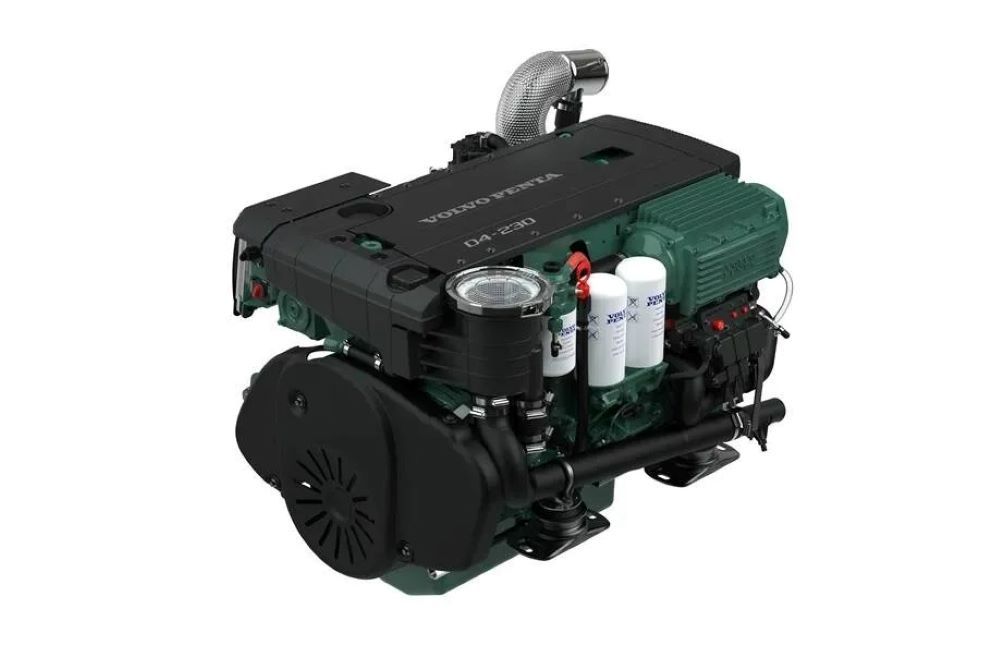

Volvo Penta Inboard Diesel Engines

The broad range of Volvo Penta inboard diesel engines means that you can always find an engine that fits the size of your vessel. The engines deliver rapid acceleration, reliable performance and the ability to maintain a high cruising speed, regardless of the load or sea. Common benefits for marine leisure and commercial applications are the unique marine torque, the low emission levels, the continuously high reliability and the option of adding additional comfort and convenience with joystick docking and driving.


Read more about Volvo Penta Inboard Diesel.

A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT
Download

QMF6M (5KW)

NANNI MARINE DIESEL GENERATOR

  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 21.7 max
  • Amperes (A): 20 cont.
  • Power (kW): 5 max
  • Power (kW): 4.6 cont.
  • RPM: 3000
Download
  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 28.7A max
  • Amperes (A): 32.7 amps cont.
  • Power (kW): 7.5 max
  • Power (kW): 6.6 cont.
A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

QMS7.5M (7.5KW)

NANNI MARINE DIESEL GENERATOR

QMS10M (10KW)

Download
  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 43.5 max
  • Amperes (A): 38.3 cont.
  • Power (kW): 10 max
  • Power (kW): 8.8 cont.
  • RPM: 1500
A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

NANNI MARINE DIESEL GENERATOR

A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

QMS16M (16KW)

NANNI MARINE DIESEL GENERATOR

  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 70.4 max
  • Amperes (A): 60.4 cont.
  • Power (kW): 16.2 max
  • Power (kW): 13.9 cont.
  • RPM: 1500
Download
A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

NANNI MARINE DIESEL GENERATOR

QMS25M (22.7KW)

  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 106.1 max
  • Amperes (A): 96.1 cont.
  • Power (kW): 22.7 max
  • Power (kW): 22.2 cont.
  • RPM: 1500
Download

Volvo Penta IPS

D6 IPS 400,450,500,600,650

A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT
Download

QMF6M (5KW)

NANNI MARINE DIESEL GENERATOR

  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 21.7 max
  • Amperes (A): 20 cont.
  • Power (kW): 5 max
  • Power (kW): 4.6 cont.
  • RPM: 3000
Download
  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 28.7A max
  • Amperes (A): 32.7 amps cont.
  • Power (kW): 7.5 max
  • Power (kW): 6.6 cont.
A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

QMS7.5M (7.5KW)

NANNI MARINE DIESEL GENERATOR

QMS10M (10KW)

Download
  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 43.5 max
  • Amperes (A): 38.3 cont.
  • Power (kW): 10 max
  • Power (kW): 8.8 cont.
  • RPM: 1500
A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

NANNI MARINE DIESEL GENERATOR

A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

QMS16M (16KW)

NANNI MARINE DIESEL GENERATOR

  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 70.4 max
  • Amperes (A): 60.4 cont.
  • Power (kW): 16.2 max
  • Power (kW): 13.9 cont.
  • RPM: 1500
Download
A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

NANNI MARINE DIESEL GENERATOR

QMS25M (22.7KW)

  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 106.1 max
  • Amperes (A): 96.1 cont.
  • Power (kW): 22.7 max
  • Power (kW): 22.2 cont.
  • RPM: 1500
Download

Volvo Penta Aquamatic Sterndrive Diesel

D3 140,170/SX

D3 140,170,200,220/DPS

D3 SOLAS (LSA)

A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT
Download

QMF6M (5KW)

NANNI MARINE DIESEL GENERATOR

  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 21.7 max
  • Amperes (A): 20 cont.
  • Power (kW): 5 max
  • Power (kW): 4.6 cont.
  • RPM: 3000
Download
  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 28.7A max
  • Amperes (A): 32.7 amps cont.
  • Power (kW): 7.5 max
  • Power (kW): 6.6 cont.
A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

QMS7.5M (7.5KW)

NANNI MARINE DIESEL GENERATOR

QMS10M (10KW)

Download
  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 43.5 max
  • Amperes (A): 38.3 cont.
  • Power (kW): 10 max
  • Power (kW): 8.8 cont.
  • RPM: 1500
A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

NANNI MARINE DIESEL GENERATOR

A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

QMS16M (16KW)

NANNI MARINE DIESEL GENERATOR

  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 70.4 max
  • Amperes (A): 60.4 cont.
  • Power (kW): 16.2 max
  • Power (kW): 13.9 cont.
  • RPM: 1500
Download
A Wall With a Lot of Buttons and Lights on It — ElectroMech Machine in Woolner, NT

NANNI MARINE DIESEL GENERATOR

QMS25M (22.7KW)

  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 106.1 max
  • Amperes (A): 96.1 cont.
  • Power (kW): 22.7 max
  • Power (kW): 22.2 cont.
  • RPM: 1500
Download

Volvo Penta Inboard Diesel Engines

D8 MH 154 kW

D8 MH 169 kW

D8 MH 195 kW

D8 MH 221 kW

D8 MH 261 kW

D8 MH 296 kW

D8 MH 313 kW

What are the best quality brands for marine equipment offered by ElectroMech Marine?

What is a Polyflex mounting system used for?

How do I choose the right marine diesel engine?
